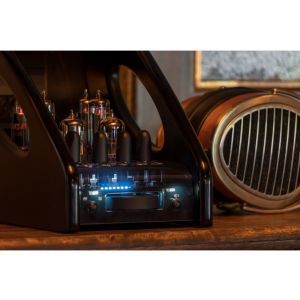

Manley Absolute Headphone Amplifier

Preamplificator Casti Manley Absolute Headphone Amplifier

Tip amplificator:Stagiu Iesire trioda lampi, Tipologie comutabila: Single-Ended sau Push-Pull
Lampi:2 x 12AX7 (ECC83), 4 x 6AQ5A (EL90)
Intrari:2 x RCA
Gain:16 ohm: 12 dB (Min FB), 3 dB (Max FB)62 ohm: 17 dB (Min FB), 8 dB (Max FB)200 ohm: 22 dB (Min FB), 13 dB (Max FB)
Sensibilitate intrare:600 mV AC RMS pentru iesire de 100 mW1.9 VAC RMS pentru iesire de 1W
Control Volum:- Atenuator de precizie in pasi, 0.5dB per pas- 63dB atenuare totala - Volum setat la minim = MUTE

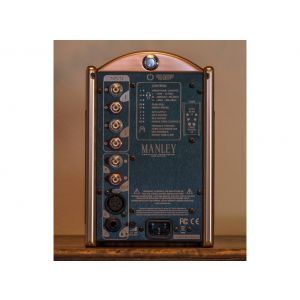

Iesiri (transformer cuplat):1 pereche RCA- Nebalansat (Iesire preamp)1 x TRS 1/4 JACK - Nebalansat1 x 4 PIN XLR - Balansat
Impedanta iesire:Switchable: Low 12-50 Ohm, Mid 50-200 Ohm, High 200-600 Ohms
Putere maxima iesire = 1W in 12 Ohm BW 22Hz-22kHz
Proportie semnal-zgomot:83 dB (1kHz sine wave, 100mW output, BW 22Hz-22kHz)
Noise Floor:-80 dBu BW 22Hz-22kHz-85 dBu A-Weighted
Crosstalk canal:-71 dB (1kHz sine wave, 100mW output, BW 22Hz-22kHz) Stanga-72 dB (1kHz sine wave, 100mW output, BW 22Hz-22kHz) Dreapta
Atenuare balans Control Channel:72dB per canal (1kHz sine wave, 100mW output, BW 22Hz-22kHz)
Raspuns in frecvente:Push-Pull= Flat 10Hz &ndash. 20 kHz (-1dB @ 40 kHz)Single-Ended= 20Hz &ndash. 20 kHz (-0.5dB @ 10Hz, -1dB @ 50 kHz)
Distorsie:Push-Pull= 0.16% THD+N (BW 20Hz-22kHz)Single-Ended= 1.0% THD+N (BW 20Hz-22kHz)

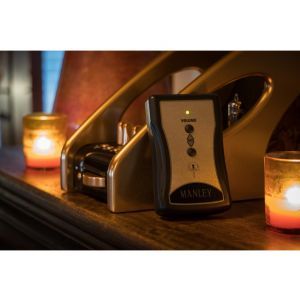

Telecomanda Remora RF
Voltaj operare Mai : 90-250 VAC, 50-60Hz,
Dimensiuni: 292 x 140 x 208 mm (LxWxH)
Greutate: 5.4 Kg
Putere consum in modul Standby = 0.5W, Putere maxima = 80W

Specificații Manley Absolute Headphone Amplifier
Canale2
